Lineage

Object and column level lineage can be managed by clicking on lineage icon lineageIcon, found after object/attribute name. Green icon indicates that some lineage relations have already been set. New relations can be set from Column level relations.

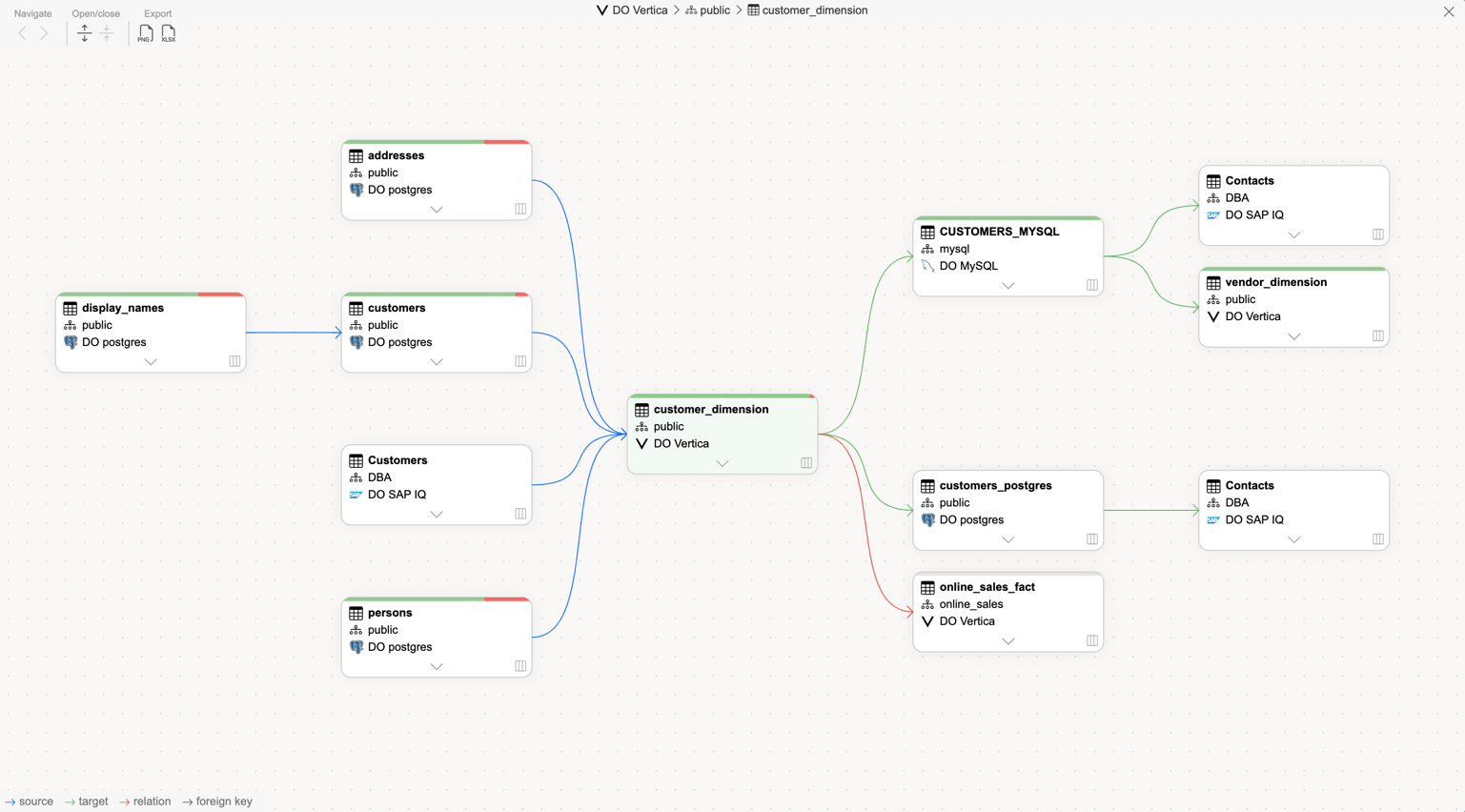

Object level lineage

Object level lineage can be opened from Catalog objects view.


Direct relations

  • By clicking on Columns chevron chevronIcon for any of the objects found on the lineage graph, a list of all active columns for selected object is displayed, with direct relations to any other columns.

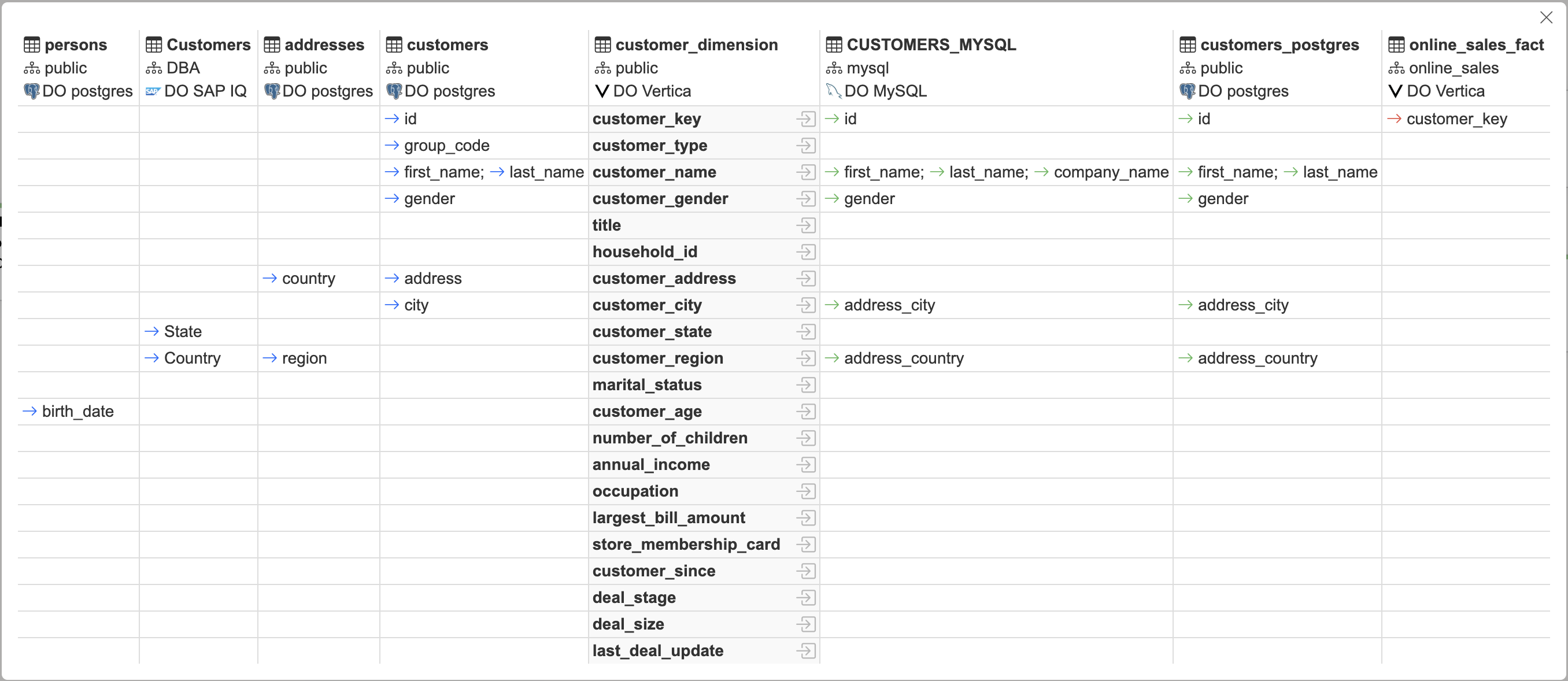

  • By clicking on Columns detailed view icon lineageDetailed a detailed view of all columns for selected object is displayed.

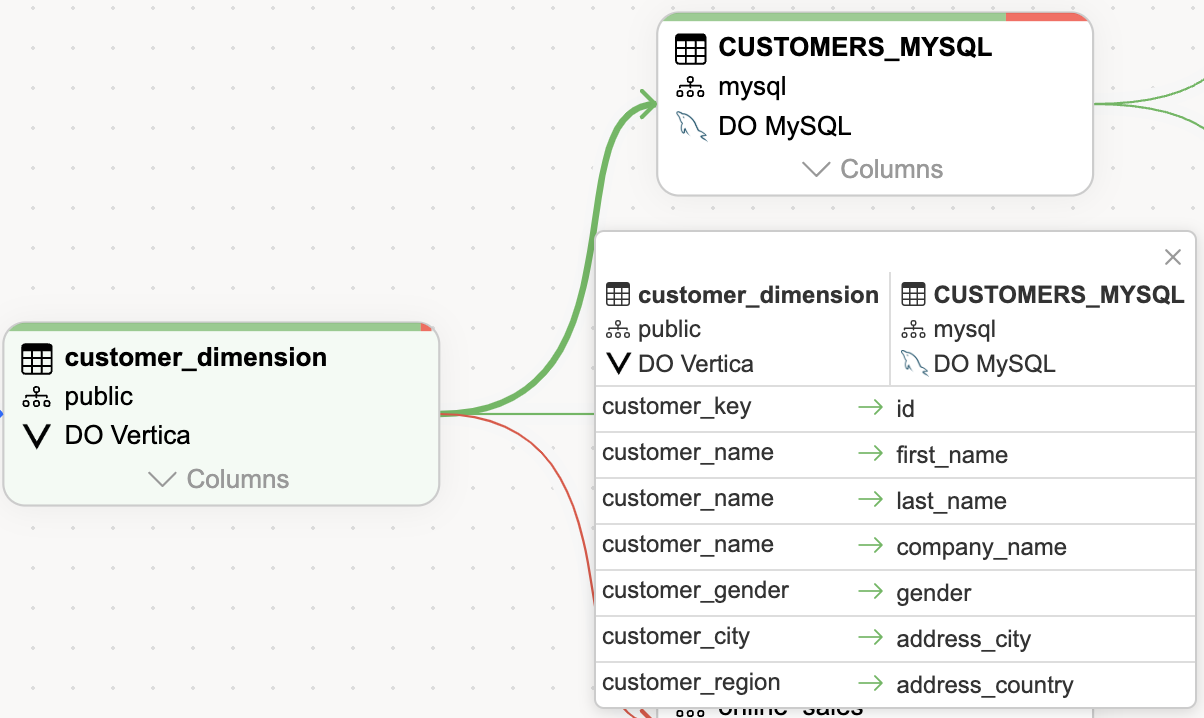

Column relation map

By clicking on any of the relation paths, a column map for selected relation will be displayed.


dbt badge

Objects and columns matched to a dbt project display a small dbt badge in the upper-right corner of their node. Clicking the badge opens the dbt Resources browser with the corresponding model, source, seed, snapshot, or exposure pre-selected - useful for jumping straight from a lineage node to its raw and compiled SQL, tests, and manifest metadata.

The badge only appears when the dbt enrichment is still active; nodes whose dbt project has been removed are shown without the badge.

Data quality

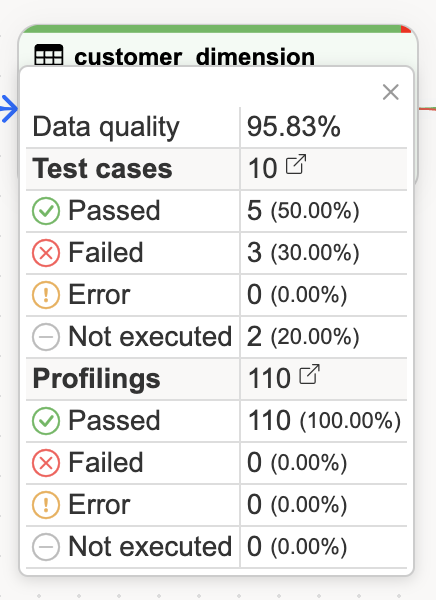

By clicking on data quality bar, a Data quality overview will be displayed

ObjectDataQuality

Clicking ArrowUp icon will redirect to related test cases or profilings

Viewing origin queries

In case of automated lineage you can view the query where lineage originates from by pressing on the lineage_sql_button.png button. This can be done on object or column level.

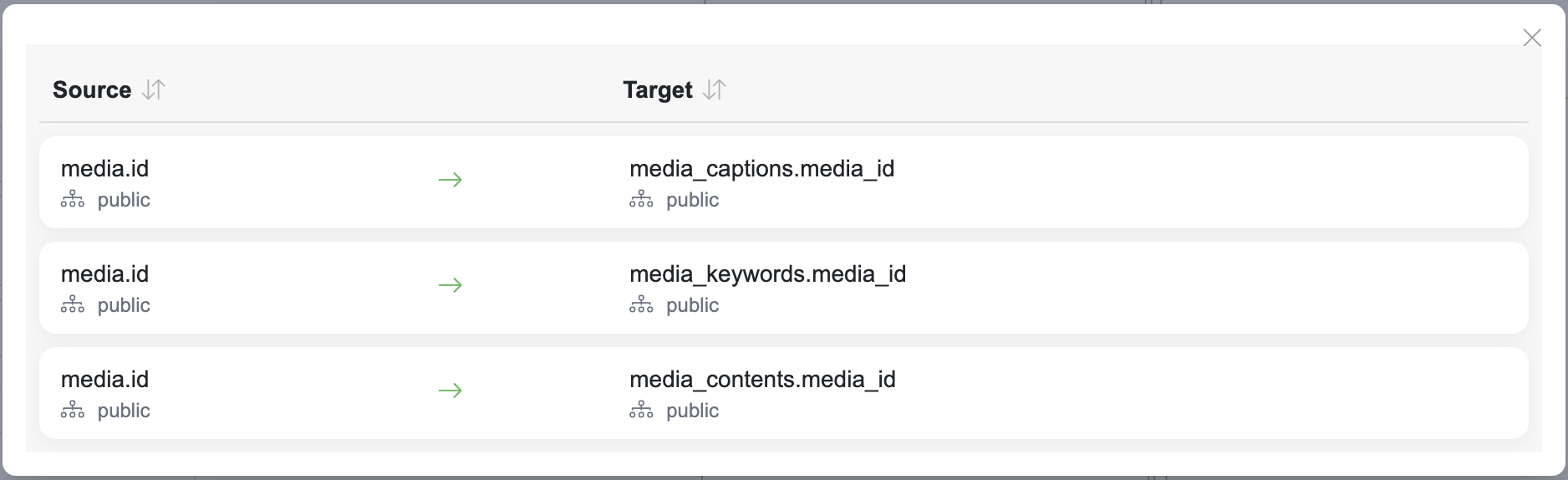

Relations

From all relations you can view detailed information about queries the relation originates from

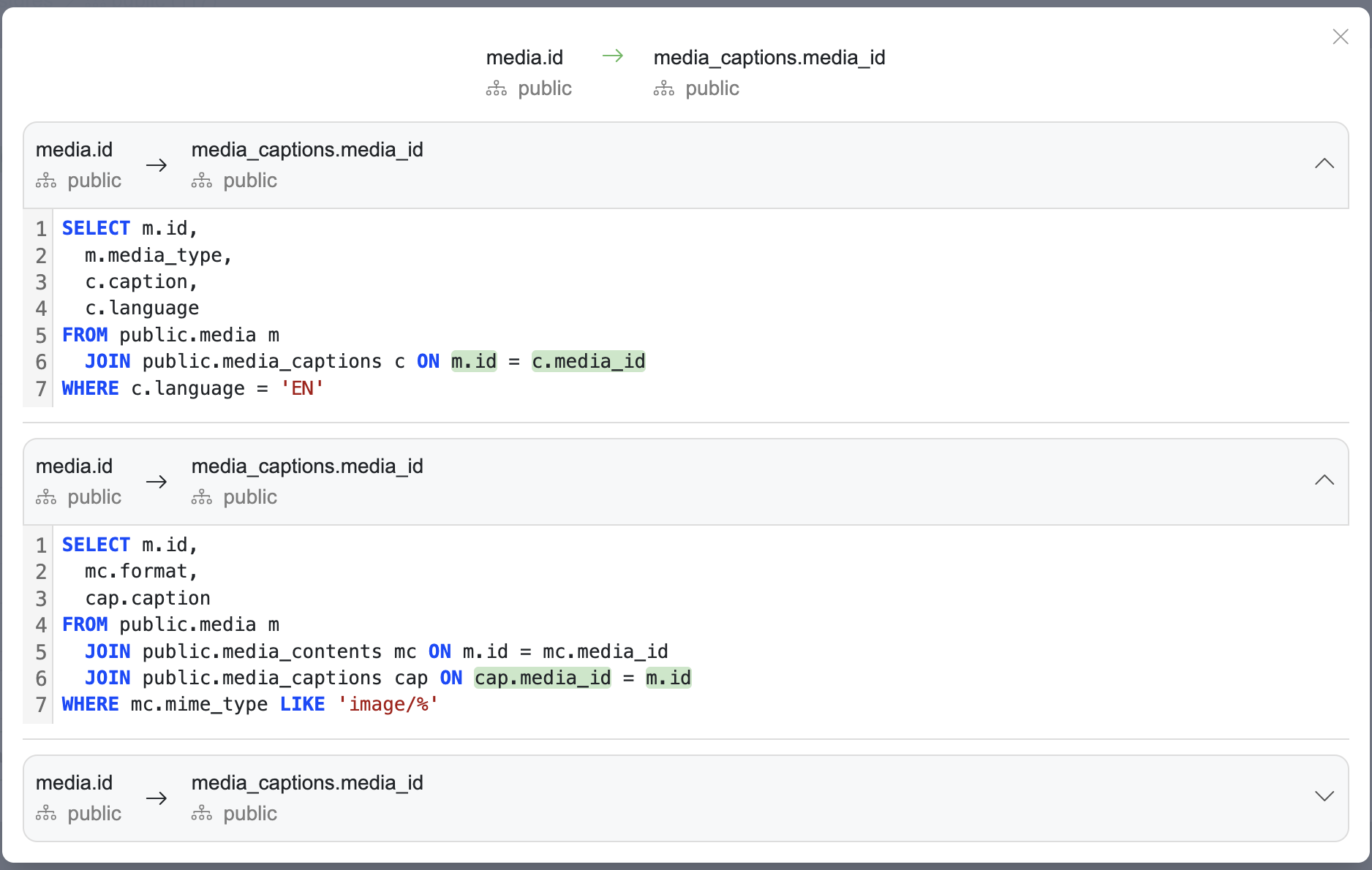

Relation reference queries

For each reference the modal shows Created by and Created at at the top of the relation summary, and each individual reference in the chain also shows its own Created at timestamp under the header. This makes it easy to tell when an automated lineage relation was first picked up and when individual contributing queries were last reimported.

Deleting a single query reference

When an automated relation has multiple contributing query references, you can remove just one of them without dropping the whole relation. Hover over a reference in the chain - a trash icon appears next to the header. Click it and confirm the prompt; the reference is removed and the relation stays in place as long as at least one other reference still backs it. If you remove the last remaining reference the relation itself is deleted.

Use this to clean up references from one-off ad-hoc queries while keeping the relation alive through your stable ETL queries.

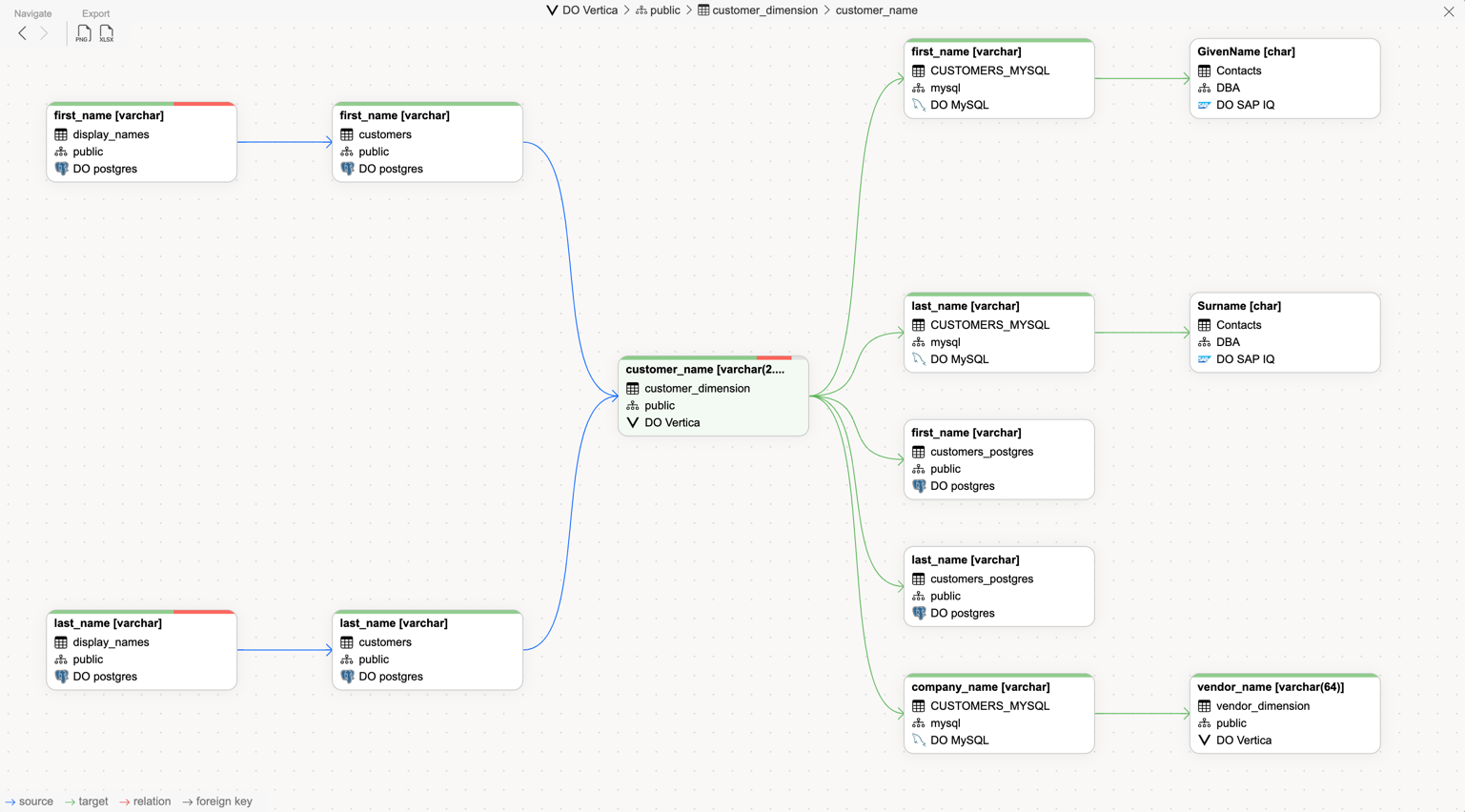

Column level lineage

Column level lineage can be opened by clicking on any of the columns in Object level lineage graph, or by clicking on Lineage icon, found after any attribute name in Object detailed view.


Adding new relations

  • Open object level lineage to get options of adding new relations

  • A detailed table view allows users to visually explore and manage column relations. Users can select specific columns and define custom relations between them, specifying the source, connection, schema, and target object.

    addRelation
  • Open column level lineage to get options of adding new relations

  • New relations can be added by hovering on any of the columns and clicking on the green Plus icon.

    columnsDetailed

Deleting a relation

deleteRelation

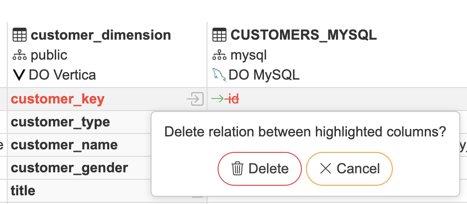

To remove a relation, select the column with the existing relation. Clicking on it will open a confirmation modal for deletion.

columnsDetailedDelete

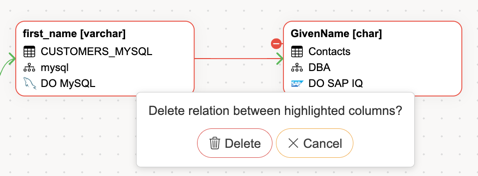

To remove a relation between columns, hover on the column and click the red minus icon. Clicking on it will open a confirmation modal for deletion.

Lineage actions

lineage_actions
  • Navigation - Graph navigation forward or backward.

  • Open/close - Expand all column relations.

  • Export - Possible to export lineage as a PNG or Excel file.

Mass actions

  • Manage relations button can be found on Objects or Attributes tab sidebar.

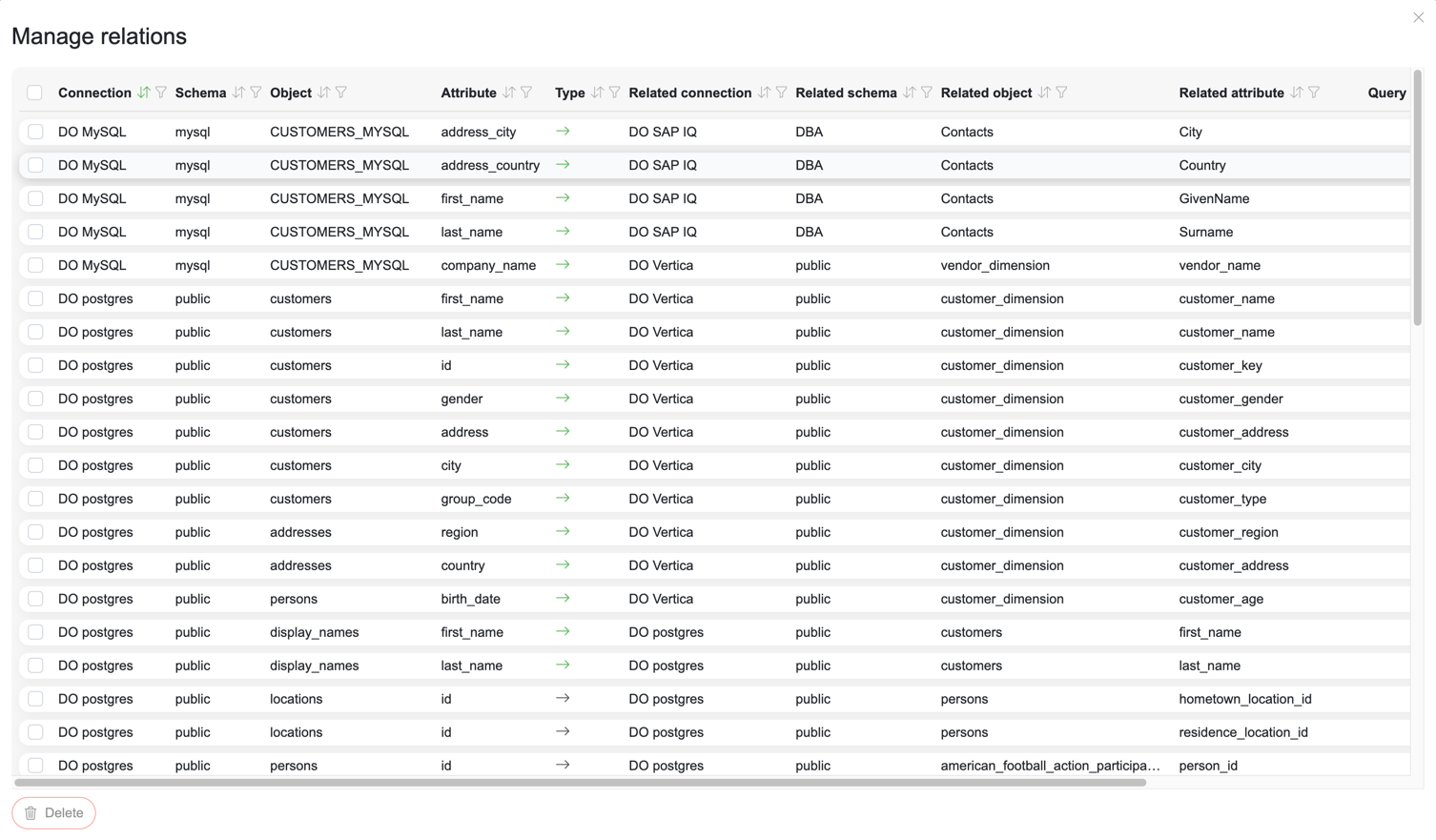

  • Manage relations view allows you to manage all lineage relations between catalog objects in a single view. This includes visibility into their origin and creation dates, making large-scale lineage management more efficient.

    lineageMassActions

Relation origin tracking

The manage relations view includes two columns for tracking where relations originate from:

  • Origin Type - indicates how the relation was created (e.g. imported, manual, automated)

  • Origin - provides the specific source reference, such as the import file name or an UUID identifier for relation batch

For file-based imports, the origin is automatically set to the import file name. For automated lineage, the origin references the source query.
